You can link a project to the organisational and planning hierarchy. A project can be either linked to an existing Action or a Task.
 | Actual linking of a project to planning area will be done at this point. Please refer the Business Rules for information on Synchronisation. |
To link a project to an action or a task in Camms.Strategy, you should first choose the correct strategy. This is done via the Project Linkage object's strategy tab.
Link a Project to an Action

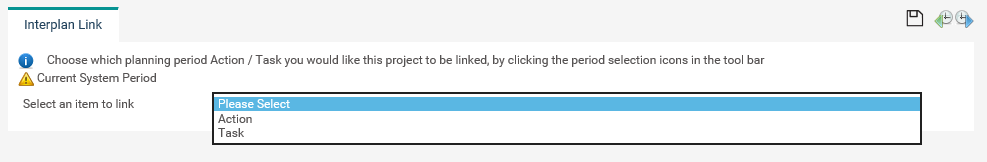

You can link your Project to an existing Action or create it as a new Action within Camms.Strategy. To link an action, select the 'Action' from the list.
Link a Project to an Existing Action
STEP 1: Click the 'Existing Action' button.

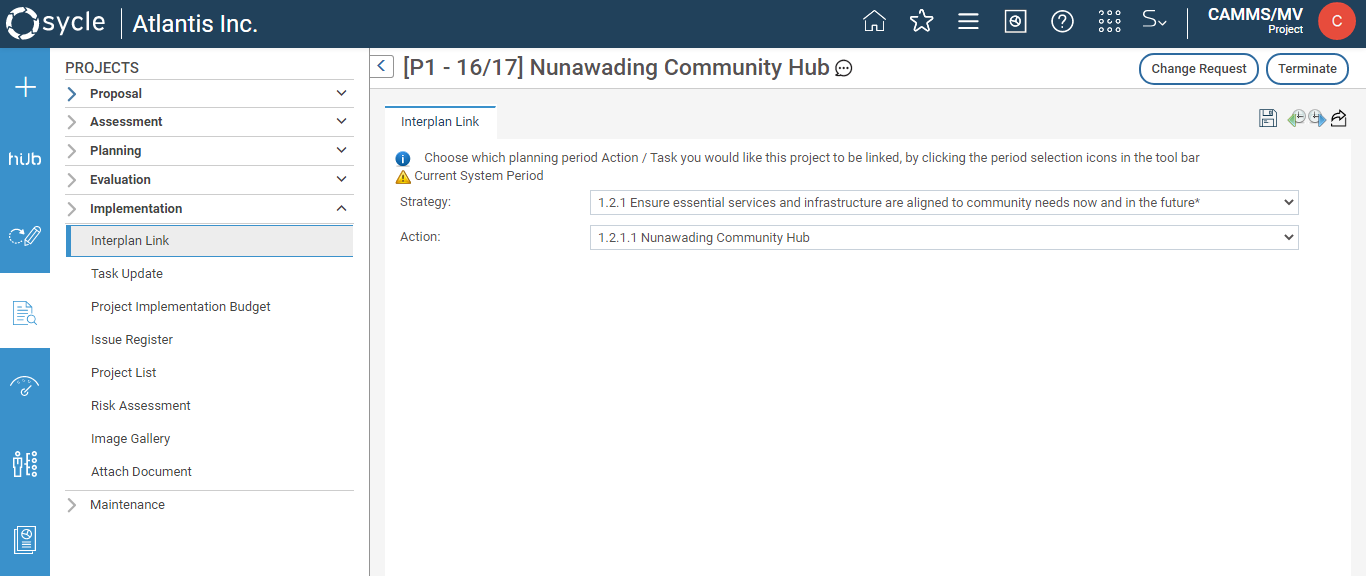

The Strategy dropdown will list the primary and secondary strategies you selected in the project linkage area. By default the strategy will be set to the primary strategy selected in the project linkage area. However, if you wish to link the project to a secondary strategy you can do so by selecting the relevant strategy from the dropdown.
STEP 2: Select the relevant action that you wish to link and click 'Save'.
Link a Project to a New Action
STEP 1: Click the 'New Action' button.

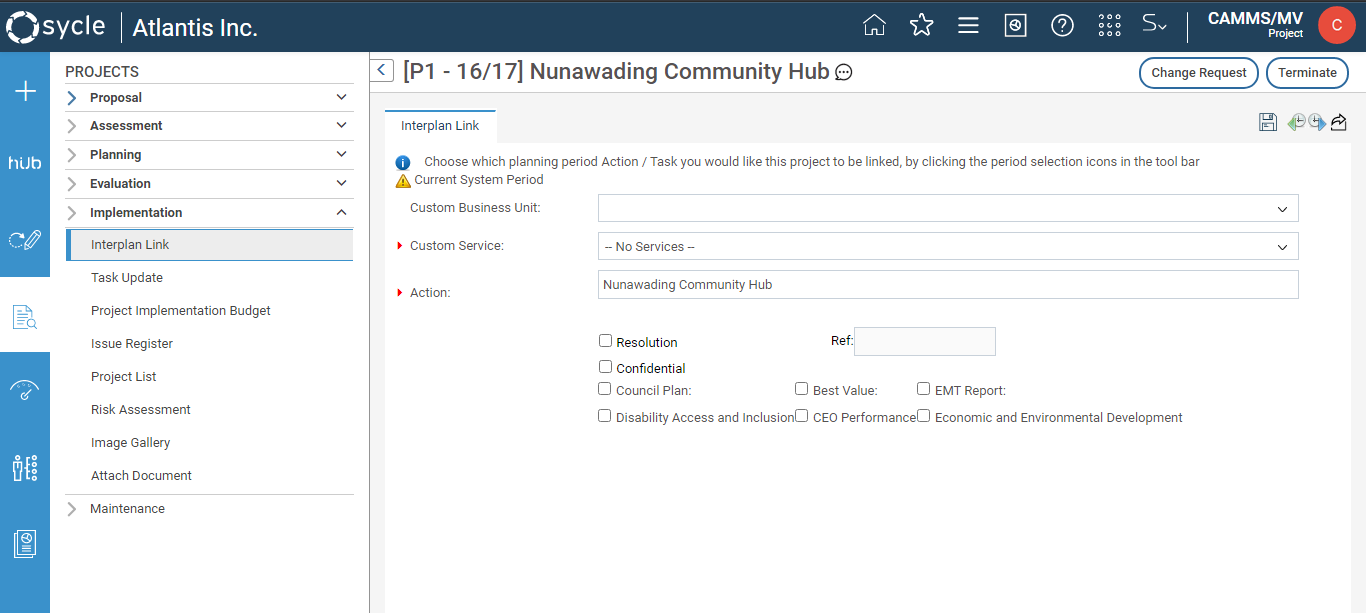

You will be directed to the page shown below. By default the Action title will be the same as the project title. You can change it as required.
STEP 2: Specify the following details and click 'Save'.
Field | Description / Instructions | Mandatory / Optional |
Business Unit | Allows to select a Business Unit. Business units are populated directly through the Framework > Business Unit area | Optional |
Service | Service profile will default to the primary service profile selected in the project linkage and use the dropdown selections to change service profile if required. | Optional |
Action | Name of the Action. You can modify as required. | Mandatory |
Action tick boxes | Enables selection of the action tick boxes | Optional |
Ref | Allows to define the action reference number | Optional |
Link a Project to a Task
You can link your Project to an existing Task or create it as a new Task within Camms.Strategy. To link a task, select the 'Task' from the list.
Link a Project to an Existing Task
STEP 1: Click the 'Existing Task' button.
The Strategy dropdown will list the primary and secondary strategies you selected in the project linkage area and the relevant action link to that strategy.
STEP 2: Select the relevant task that you wish to link and click 'Save' icon.
Link a Project to a New Task

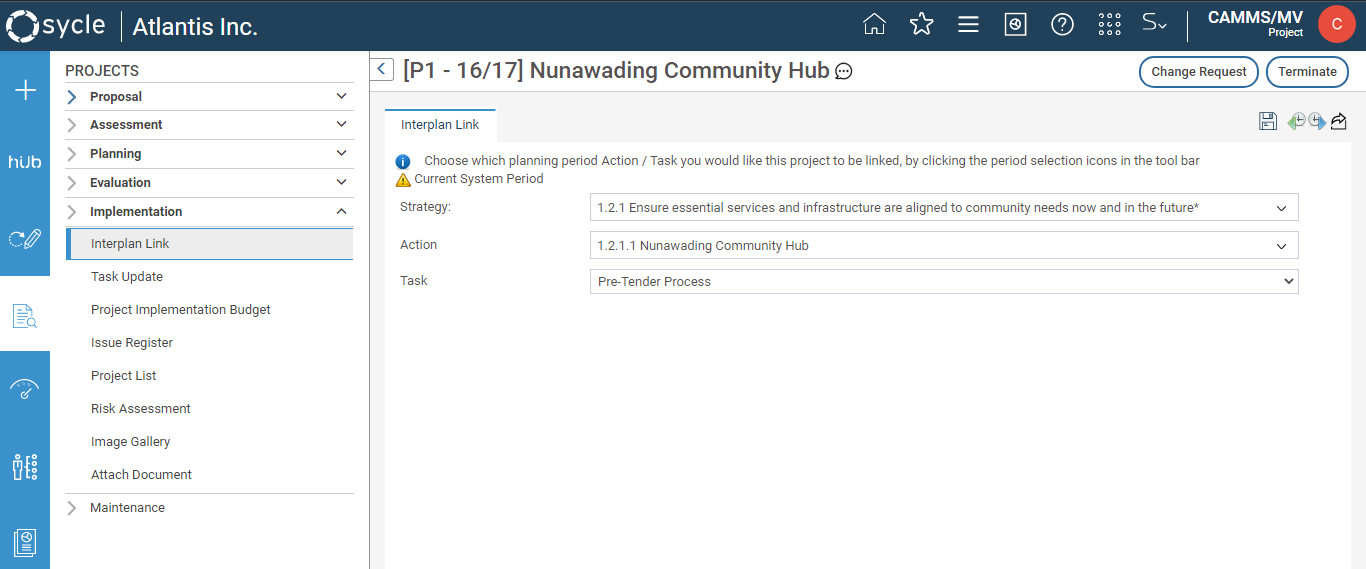

STEP 1: Click the 'New Task' button and specify the following details.
Field | Description / Instructions | Mandatory / Optional |
Strategy | Allows to select strategy. The dropdown list populated based on the primary and secondary strategies selected within Project Linkage area. | Mandatory |
Action | Allows to select Action. The dropdown list is populated based on the Strategy selected within 'Strategic Priority' dropdown. | Mandatory |
STEP 2: Click the 'Save' icon.
All project tasks created within Task Planning area will be linked as sub tasks within.
Important Note: You cannot link 2 different projects to the same action (either through different tasks or 1 to a task and 1 to the action). The Projects Gantt chart tasks will be added below the linked 'task or action'. Hence, it will override the other linked project which is linked to different task within the Gantt.
Exporting the information in the object
You can export information in the object to formats such as PDF, Word, Excel etc. by following the steps below;

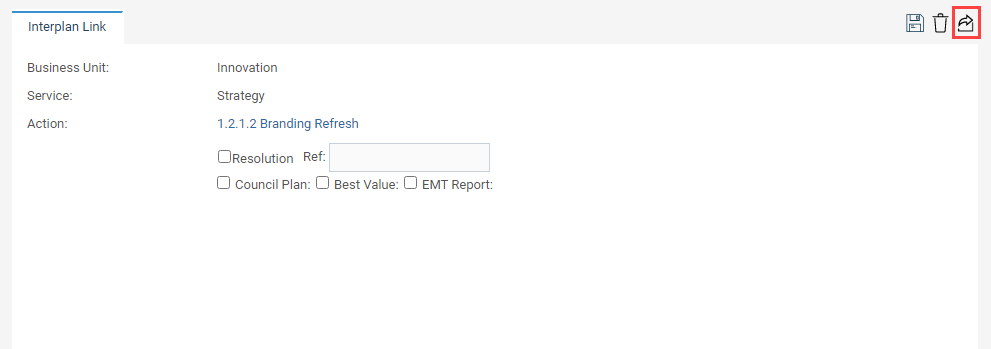

- To generate an export of the object, click on ‘Export’ icon on the toolbar.

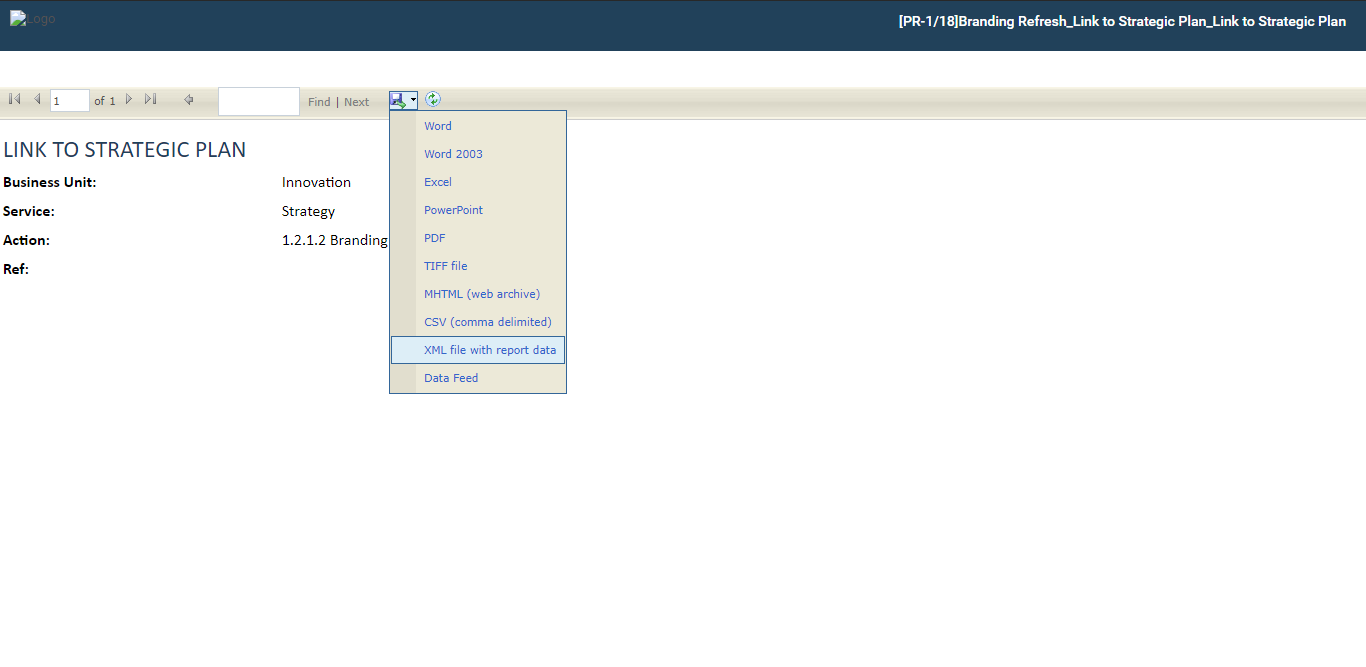

- Upon clicking the ‘Export’ icon, you will see a preview of information within the object on a new browser tab.
Click on ‘Export dropdown menu’ icon and select the preferred export format from the menu to download the file in the selected format.
